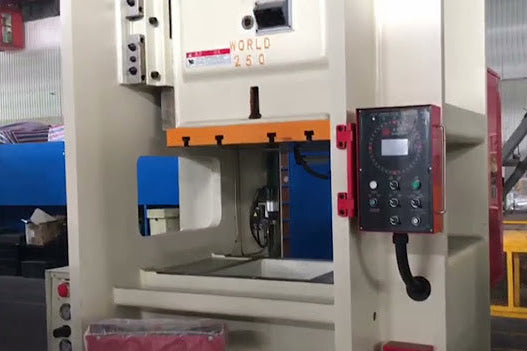

WORLDPRESS JW31 250
Potencia de precisión. Diseño que inspira confianza.
The WORLD JW31-250 is an H-frame , single-crank mechanical press with a capacity of 250 tonnes (≈ 2500 kN) . It offers precision, robustness, and modern equipment (PLC + HMI, wet-pneumatic clutch, hydraulic protections), ideal for heavy-duty stamping, progressive die-cutting, and demanding industrial applications.
Especificaciones técnicas
| Especificación | Valor |
|---|---|
| Nominal capacity (Pe) | 2500 kN / 250 tons |
| Slider stroke (Stroke Length, s) | 220 mm |
| Fixed speed (Fixed SPM) | 30 strokes/minute |
| Optional variable speed | 20-35 strokes/minute |
| Maximum closing height (Max Die Shut Height, H₂) | 500 mm |
| Die Height Adjustment (t) | 120 mm |
| Side window light (Side Window Size FB, E) | 800 mm |
| Distance between columns (Between Uprights, G) | 1300 mm |
| Table dimensions (Bolster) | 800 × 1200 mm (Front-Depth × Length-Right) |
| Table thickness (Bolster Thickness, H₃) | 190 mm |
| Useful dimensions bottom-front / left-right (Slide Bottom Size) | 750 × 950 mm |
| Table Surface Height (H₁) | ≈ 1205 mm |
| Main engine power | 22 kW |
| Approximate weight | 27,500 kg |
| External dimensions (Front-Back × Left-Right × Height) | ~ 2500 × 2050 × 4500 mm |
Equipamiento de la Máquina:
Estándar
- Wet type pneumatic clutch and brake in oil bath
- PLC control with HMI
- Hydraulic overload protection device
- Long-stroke
- 8-face guideways for high precision (“long guide rails / 8-face guideways”)
- Electric die height adjustment (motorized die height adjustment) with height indicator
¿Interesado en esta máquina?
- ✅ Wet-pneumatic clutch, greater durability
- ✅ PLC + HMI, modern operating interface
- ✅ Generous maximum closing height (500 mm)
- ✅ Robust table 800x1200 mm workable
- ✅ Multi-sided guides, precision in every stroke
