WORLDPRESS JW36

Potencia de precisión. Diseño que inspira confianza.

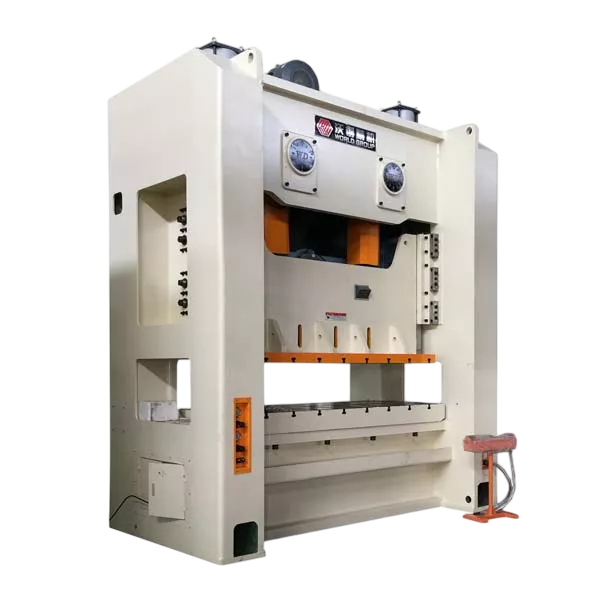

The World JW36-160 is a 160-ton H-frame (two-point, double-crank) mechanical press designed for progressive stamping and large metal parts. It features high structural rigidity, a high-precision slider guide, PLC/HMI control, a wet-pneumatic clutch, and a hydraulic overload protection system.

Solicita Cotización
WORLDPRESS JW36
WORLDPRESS JW36

Especificaciones técnicas

Especificación Valor
Nominal capacity 1,600 kN / 160 tons
Slider stroke 200 mm
Strokes per minute (fixed) 45 SPM
Strokes per minute (variable, optional) 35-55 SPM
Maximum die height (Die Shut Height) 450 mm
Die height adjustment 100 mm
Side window 800 × 400mm
Table dimension (Bolster) 1,800 × 760 mm
Slider area (Slide bottom) 1,500 × 700 mm
Table thickness approx. 160 mm.
Table height from floor approx. 900 mm.
Main engine 18.5 kW
Required air pressure 0.5 MPa
External dimensions (FB × LR × Height) 2400 × 2650 × 3950 mm
Approximate weight 21,500 – 22,000 kg

Equipamiento de la Máquina:

Estándar

  • Welded H-type steel monoblock structure; heat treatment (annealing) to relieve internal stress.
  • Double crank
  • crossed crankshafts
  • large transmission gears to reduce lateral forces.
  • Wet type pneumatic clutch and brake.
  • Lengthened slide guides
  • eight guide surfaces
  • more precise sliding.
  • Hydraulic overload protection.
  • Automatic lubrication system (“auto grease lubrication”).
  • PLC + HMI control
  • monitor for monitoring parameters and settings.
Imagen destacada

¿Interesado en esta máquina?

  • ✅ Double crank for lateral force balance
  • ✅ Large table ideal for progressive dies
  • ✅ Maximum die height 450 mm
  • ✅ Optional variable speed from 35-55 SPM
  • ✅ Eight-surface guides for superior precision
