WORLDPRESS YW27
Potencia de precisión. Diseño que inspira confianza.

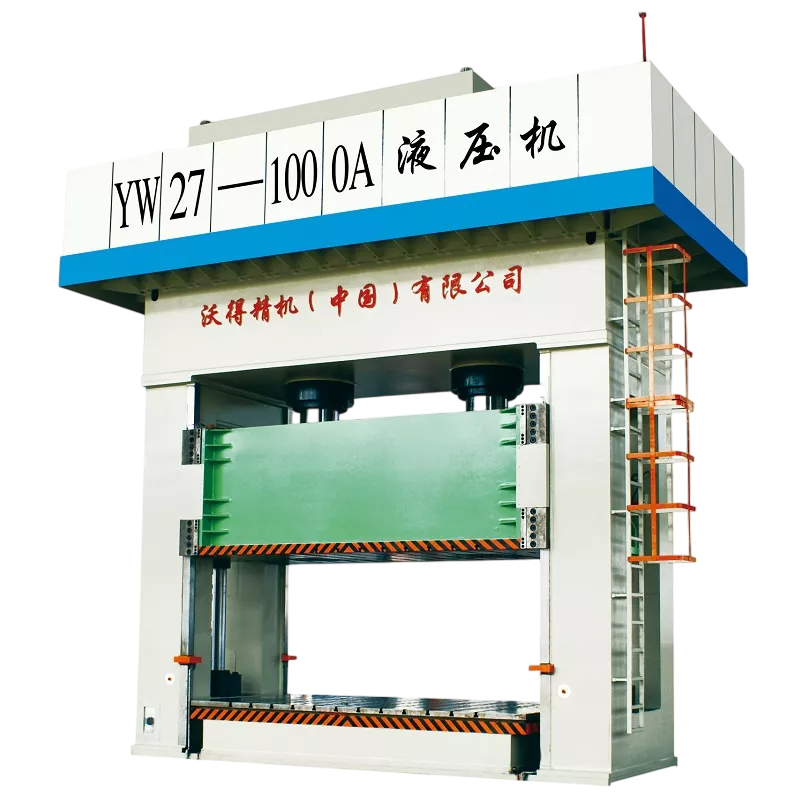

The WORLD YW27 is an H frame (four columns / box structure) type hydraulic press designed for deep forming, stamping, drawing, bending and forming of sheet metal.
Especificaciones técnicas
| Especificación | Valor |
|---|---|
| Nominal capacity | 2,000 – 16,000 kN (≈ 200 – 1,600 t) |
| Hydraulic cushion force (optional) | 630 – 6,000 kN |
| Slider stroke | 800 – 1,600 mm |
| Hydraulic cushion stroke | 200 – 400 mm |
| Maximum working pressure | 25 MPa |
| Maximum opening height (Daylight) | 1,100 – 2,500 mm |
| Slider dimensions (LR × FB) | from 1,000 × 1,600 mm to 4,500 × 2,500 mm |
| Table dimensions (Bolster) | from 1,000 × 1,000 mm to 4,500 × 2,500 mm (depending on model) |
| Approach speed | 180 – 250 mm/s |
| Working speed (pressed) | 8 – 25 mm/s |
| Return speed | 100 – 160 mm/s |
| Main engine power | 15 – 165 kW (depending on model) |
| Approximate weight | 20 – 150 tons (depending on the model) |
¿Interesado en esta máquina?
- ✅ Robust H-type frame structure
- ✅ Guides on fixed columns, high precision
- ✅ Configurable hydraulic load by optional cushion
- ✅ Maximum operating pressure 25 MPa constant
- ✅ Wide slider travel (up to 1,600 mm)
